Jinko JKM580N-72HL4-BDV 580W N‑Type TOPCon Bifacial Panel Guide

Commercial and utility-scale solar is evolving quickly. Owners want more energy from every square foot, engineers are designing around 1500V systems, and long-term investors expect assets to perform reliably for decades. Traditional 300–400W modules struggle to hit those targets on modern projects. The Jinko JKM580N-72HL4-BDV 580W N-type TOPCon bifacial solar panel was created for this new reality, delivering high output, slow degradation, and technology that can support serious long-term portfolios.

Portlandia Electric Supply features this Tiger Neo 580W module as a key option for commercial, industrial, and utility builders. The panel combines efficient N-type TOPCon cells, durable glass-glass construction, and 1500VDC compatibility in a format that fits large rooftops, carports, and ground-mount plants. This guide walks through what the Jinko 580W panel offers, where it performs best, and how Portlandia helps project teams deploy it with confidence.

Jinko 580W N-Type TOPCon Overview

The Jinko JKM580N-72HL4-BDV belongs to Jinko’s Tiger Neo family and is targeted squarely at high-performance commercial and utility installations. With a 580W rating and high module efficiency, it allows designers to place more power on each row or rooftop block without increasing footprint. A 144 half-cell configuration and bifacial glass-glass build give the panel modern electrical behavior and the ability to turn reflected light into usable energy.

In practice, this means fewer modules per megawatt, fewer attachment points, and simpler stringing for EPCs and installers. Asset owners gain a module that is built on mainstream technology, backed by a major global manufacturer, and designed to keep producing well beyond the typical 25-year planning horizon.

Why N-Type TOPCon Matters

Many earlier commercial systems relied on P-type PERC modules. Those products were cost-effective, but they carried more light-induced degradation and left some efficiency potential untapped. N-type TOPCon cells approach the problem differently. By starting with N-type silicon and using passivated contacts, they are engineered to lose less performance in the field and maintain stronger output at higher temperatures.

For owners and financiers, the impact shows up as a flatter production curve over time. Systems built with N-type TOPCon modules can retain more of their original capacity in later years, which helps long-term cash flow models and reduces the risk that plants underperform relative to early estimates.

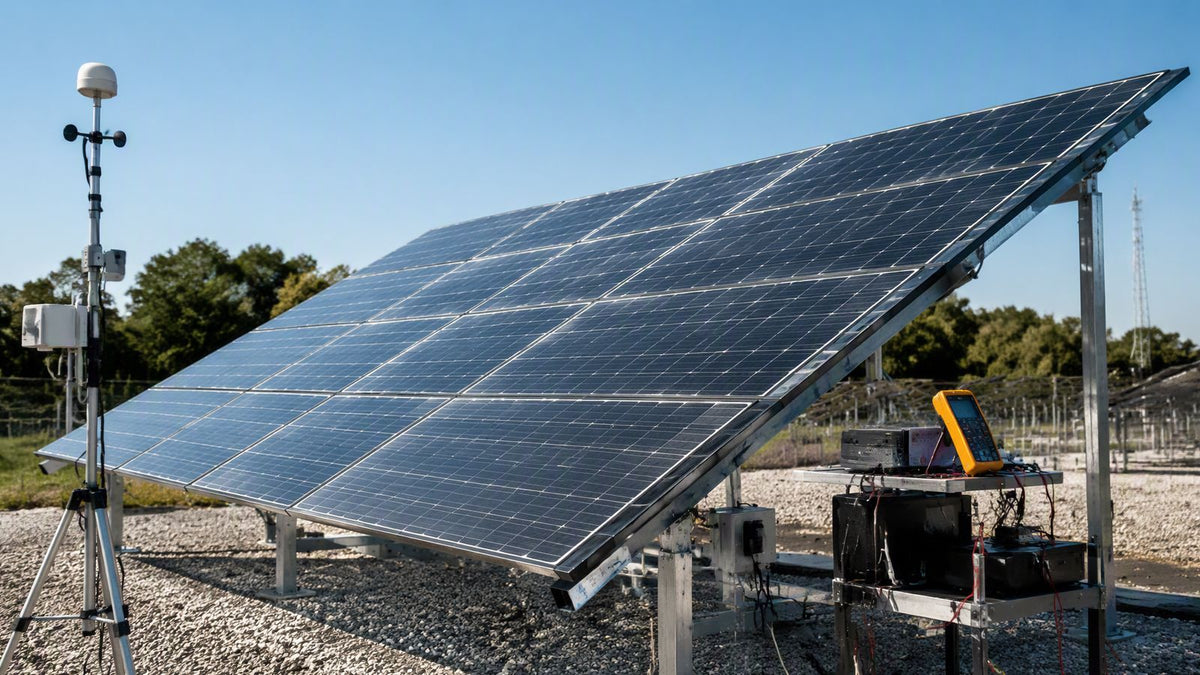

Bifacial Glass-Glass Design in Practice

Unlike traditional backsheet modules, the JKM580N-72HL4-BDV is bifacial and glass-glass. Both sides of the panel are active, and both are protected by tempered glass. The front converts direct sunlight, while the rear collects light that bounces off the roof, ground, canopies, or surrounding surfaces. Well-designed sites with light-colored surfaces or elevated mounting can see a meaningful bump in annual production from this rear-side contribution.

The dual-glass stack also improves durability. Glass is more resistant to UV exposure and moisture than many polymer backsheets, which supports long service life when combined with appropriate mounting hardware. For trackers, carports, and exposed ground-mounts, this extra robustness is a practical benefit, not just a design feature.

Key Electrical and Mechanical Specs

Always refer to the current Jinko datasheet for precise values, but the following characteristics define how this module behaves in a typical system:

• Nominal Power: 580W per module under standard test conditions.
• Cell Layout: 144 half-cut monocrystalline N-type cells arranged for low resistance and improved partial-shade behavior.
• System Voltage: 1500VDC rating, suitable for modern high-voltage string designs.
• Fuse Rating: Maximum series fuse rating of 30A, supporting parallel stringing in commercial combiner setups.
• Mechanical Format: Large-format glass-glass panel with a slim frame profile, designed to work with common commercial racking systems.
• Warranty Framework: Long-duration product and performance warranties, with linear power guarantees that extend well beyond the first couple of decades of operation.

Voltage and current levels fit neatly within the working ranges of today’s 1500V string inverters, allowing designers to build longer strings while keeping cold-weather Voc and inverter limits in check. That flexibility makes it easier to standardize array blocks across projects.

Ideal Applications and Use Cases

The Jinko 580W N-type TOPCon bifacial module is aimed at professional projects where energy yield, space efficiency, and long-term reliability carry more weight than lowest-possible upfront price.

Large Commercial Rooftops

Distribution centers, manufacturing plants, and big-box retail roofs often have clear areas broken up by HVAC equipment and access paths. High-watt modules allow designers to reach target capacity with fewer panels, which simplifies layout around these obstacles and can reduce roof penetrations or ballast weight.

Carports and Canopies

Solar carports and other canopy structures naturally favor bifacial modules. Elevated mounting encourages rear-side irradiance from pavement, vehicles, and nearby surfaces. Using 580W panels means fewer modules per structure, which translates into cleaner wiring, fewer steel members, and straightforward O&M.

Utility-Scale Arrays and Trackers

In large ground-mount projects and tracker fields, this module’s high power and bifacial capabilities help compress levelized cost of energy. Arrays can be laid out with standard row lengths and string sizes while still achieving strong production per acre, especially when the ground surface is engineered to be reflective and uniform.

Constrained or Brownfield Sites

Landfills, brownfields, and sites with strict boundary limits or loading restrictions benefit from every extra watt per module. High-power bifacial panels make it easier to reach meaningful capacity on fewer foundations or ballast blocks, which can turn challenging sites into workable projects.

Design and Installation Considerations

Getting the most from this module is less about exotic engineering and more about good fundamentals: correct string sizing, thoughtful mechanical design, and attention to the rear of the array.

String Sizing at 1500V

While 1500V systems allow longer strings, you still need to check maximum open-circuit voltage at the coldest expected site temperature and ensure it remains within inverter and code limits. Working through these calculations early prevents field changes later. Portlandia’s team can assist with high-level stringing concepts if needed.

Rear-Side Shading and Mounting Height

For bifacial modules, anything that blocks light from the rear—rails, cable trays, beams, or nearby rows—reduces the extra energy you can capture. Choosing appropriate table heights, tilt angles, and spacing, and routing cables thoughtfully, all contribute to stronger rear-side performance.

Handling Large-Format Modules

Large modules are efficient to install but must be handled carefully. Using two installers per panel, lifting from recommended points, and following Jinko’s clamp zone guidance helps protect the glass and frame. Proper torque on clamps is important for both safety and warranty compliance, especially in high-wind or heavy-snow locations.

Financial Impact and LCOE Benefits

Choosing a module is as much a financial decision as a technical one. In many projects, 580W N-type bifacial modules reduce both upfront balance-of-system spend and long-term cost of energy compared with smaller, monofacial panels.

Fewer Modules, Leaner BOS

Reaching a given DC size with fewer modules cuts racking, wiring, and combiner hardware. It can also simplify project staging and reduce time spent lifting panels into place. Those savings often offset part of any module price premium and can shorten installation schedules.

Higher Lifetime Energy

When you layer N-type degradation behavior, bifacial energy gain, and good site design, the result is more kilowatt-hours over the life of the system. Because revenue is based on energy, not nameplate watts, this additional production plays a direct role in improving payback periods and project IRR.

Bankability and Financing

Large-scale owners and lenders prefer equipment from manufacturers with a strong track record and clear warranty support. A high-power, Tier 1 module with long performance coverage fits well into that picture, helping projects clear technical due diligence and secure competitive financing terms.

How Portlandia Electric Supply Supports Jinko 580W Projects

Portlandia Electric Supply backs the Jinko JKM580N-72HL4-BDV with the kind of support structure commercial and utility projects require. In addition to modules, Portlandia can provide inverters, batteries, racking, switchgear, generators, and other key components through a single procurement channel. That simplifies purchasing and helps keep material arrivals aligned with construction milestones.

Account managers and technical specialists are available to discuss module choices, high-level electrical design, and code considerations, so equipment selections line up with project goals. Fast shipping from multiple hubs and project-based pricing help EPCs, developers, and large installers maintain predictable budgets and schedules.

Who Gets the Most Value from the Jinko 580W Panel

This module is aimed at professionals rather than one-off residential buyers. It is an especially good fit for EPC firms, utility developers, commercial installers, and asset owners who are building sizable projects and care about both performance and bankability.

Developers can use the Jinko 580W to meet interconnection caps on tight sites, while installers gain a premium option that differentiates their commercial offerings. Long-term asset owners appreciate the combination of high output, bifacial potential, and extended warranty coverage when evaluating multi-decade revenue streams.

Future-Ready Technology for 2026 and Beyond

Solar hardware will keep moving toward larger formats, higher wattages, and more advanced cell architectures. By building around an N-type, bifacial 580W module today, project teams align themselves with where mainstream technology is headed, not where it was a decade ago.

Working with a distributor that has strong relationships with leading manufacturers also makes it easier to adapt as product lines evolve. If future revisions increase wattage or adjust dimensions, Portlandia can help customers transition without rethinking their entire design philosophy.

Getting Started with the Jinko 580W at Portlandia

If you are considering high-power modules for an upcoming project, the first step is to share your site details, target capacity, preferred equipment brands, and schedule with Portlandia Electric Supply. From there, the team can propose layouts and bill-of-material options built around the Jinko 580W module, along with alternatives if you want to compare approaches.

Once you select a direction, Portlandia will prepare a detailed quote, confirm availability, and coordinate shipments from its distribution hubs to your job sites. Ongoing communication from quote through commissioning helps ensure the right equipment arrives at the right time.

The Jinko JKM580N-72HL4-BDV 580W N-type TOPCon bifacial panel offers a blend of high output, advanced technology, and practical design that matches the demands of today’s commercial and utility-scale solar. Combined with Portlandia Electric Supply’s reach and support, it gives project teams a reliable building block for modern, high-performing energy assets.
